Model

LA-460 / 560

1000

1500

2000

Capacity

Swing over Bed

460 (18.11") / 560 (22.05")

Swing over cross slide

280 (11.02") / 380 (14.96")

Distance between centers

1000 ( 39.37" )

1500 (59.06")

2000 (78.74")

Bed

Swing over gap

680 (26.77") / 780 (30.71")

Width of Bed

317 (12.5")

Width of gap (spindle end face)

210 ( 8.27" )

Length of Bed

1990 (78.35")

2490(98.03")

2990(117.72")

Headstock

Spindle bore diameter

ø52 (2.05")

Numbered of spindle speeds

8 steps

Range of spindle speeds

80-1400 r.p.m.

Spindle nose

ASA A1-6

Carriage

Width of Carriage

485 (19.09")

Cross slide travel

250 ( 9.84" )

Top slide travel( Compound rest travel )

125 ( 4.92" )

Tool shank

20x20 ( 0.79"x0.79" )

Tailstock

Diameter of barrel

Ø52 ( 2.05" )

Travel of barrel

140 ( 5.51" )

Taper of barrel

M.T. 4

Threads

Lead screw dia.& pitch

Dia 35mm Pitch 6mm / Dia.1" x 4 T.P.I

Range of metric pitches

0.2 - 14 ( 41Nos )

Range of inch pitches

2 - 56 T.P.I. (37Nos )

Range of diametrical pitches

8-44 D.P. ( 21Nos )

Range of module pitches

0.3-3.5 M.P. (18Nos)

Feeds

Feed rod diameter

22 ( 0.87" )

Range of longitudinal Feeds

0.04 - 1.0 mm / rev

Range of cross Feeds

0.05-1.25 mm / rev

Motor

Main spindle Motor

5 HP ( 3.75kw ) OP: 7.5 HP (5.625kw)

Coolant pump Motor

1/8 HP (0.1kw)

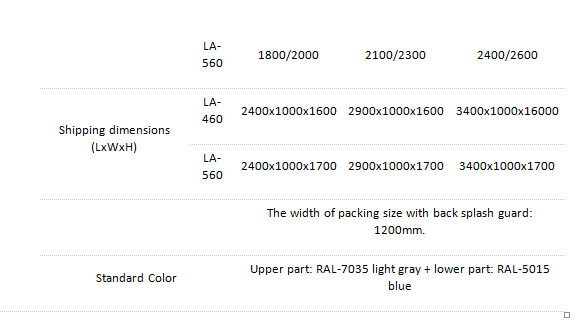

Measurement

N.W / G.W.
(approx) kgs

LA-460

1600/1800

1900/2100

2200/2400
