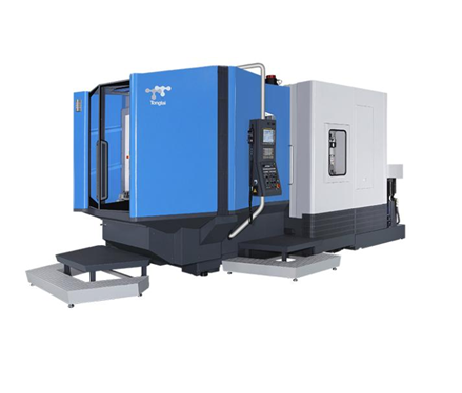

Horizontal Machining Centres HB-500II - Toongtai
Horizontal Machining Centres HB-500II - Toongtai/> <img u=
Horizontal Machining Centres HB-500II - Toongtai/> <img u=
Bootstrap Slider

Code data

HB-500II - Toongtai

Information

 High efficiency machining

HB-500II has excellent appearance and friendly human-machine interface. It improves machining efficiency by decreasing non-cutting time and becomes a high cost-performance rate machine.

High torque & power spindle

10,000 rpm build-in spindle is equipped with high power 25/30 kW and high torque 420 Nm as standard. This spindle is suitable for machining materials of aluminum alloy, cast iron and steel. HB-500II is applied mainly in the industries of automobile, construction machinery, agriculture machinery and general parts.


 Specifications

Item

Specification

Unit

HB-500II

Table

Table size

mm

500x500



Max. loading capacity

kg

600x2



Max. workpiece dimension

mm

Ø900xH900

Spindle

Spindle speed

rpm

Built-in type 10000

Stroke

X/Y/Z axis stroke

mm

800/710/710

Feed

X/Y/Z axis rapid traverse

m/min

60/60/60



Cutting feedrate

mm/min

1~20000

ATC

Tool shank



BT 50



Tool capacity

pc

60 (Opt. 90/120/180/240)



Max. tool diameter

mm

Ø125



Max. tool diameter

(w/o adjacent tool)

mm

Ø250



Max. tool length

mm

610
